Description

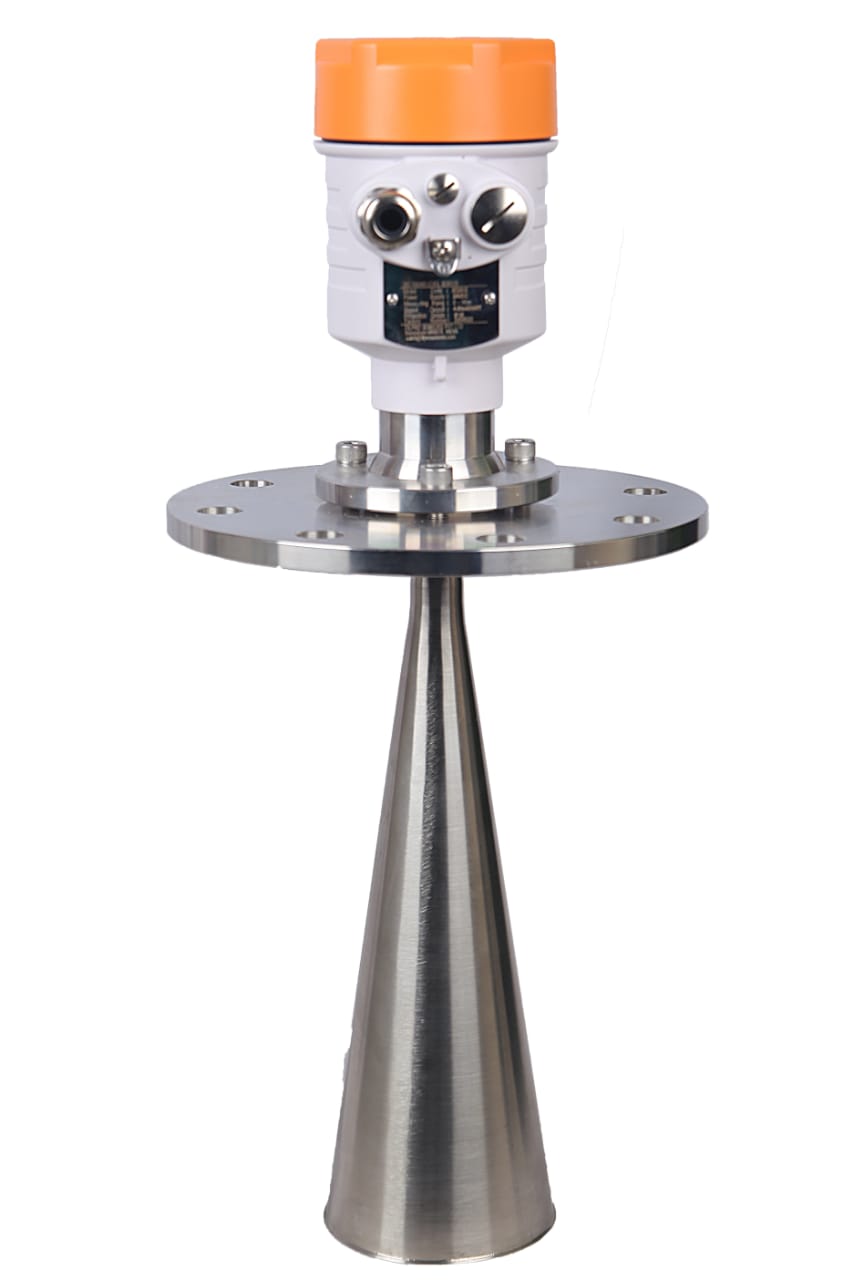

Radar Level Transmitter FILPRO offers professional Radar Level Transmitter. ​ Our radar level transmitter uses radar to continuously measure non-contact liquid level, the sensor sends microwave signals to the medium from above. ​ The surface of the medium reflects the signal back to the sensor. ​ The radar sensor uses the received microwave signal to determine the distance to the product surface and calculate the height from it. ​ Radar level transducer is an excellent substitute for differential pressure instruments, magnetostrictive, radio frequency admittance, and Ultrasonic level transmitter. ​ The radar level transmitter is not affected by vacuum, dust, temperature, pressure changes, steam and falling gases. ​ An ISO 9001:2008 Company ​ FRLT-80S ​ Application: Liquid Measurement ​ Measuring Range: 0~10m ​ Antenna Type: Lens/PTFE ​ Mounting Thread: Thread G1.5 Beam Angle: 8° ​ Response Time: <0.6s (Due To Parameter Setting) ​ Medium Temperature: (-40 ~ 120) °C ​ DK Value Of Medium: 1.5 ​ Process Pressure: (-0.1 -0.3) MPa ​ Accuracy: <2mm ​ Signal Output: (4-20) mA HART ​ Working Frequency: (76 -81) GHz ​ Explosion Proof Grade: Ex d[iaGa] IIC T6 Gb ​ Instrument Type Standard Explosion-Proof ​ Housing/Protection Grade ​ Aluminum Alloy/IP68 ​ Aluminum Alloy Dual Chamber/IP67 ​ Special Terms ​ Antenna Type ​ Lens/PTFE G1.5 ​ Anti-Corrosive ​ Process Connection Thread G1.5 ​ Special Terms ​ Electronic Unit ​ 2 Wires (4 ~ 20) mA 24VDC/HART ​ 4 Wires (4-20) mA 220V AC ​ Special terms ​ Cable Inlet ​ M20*1.5 NPT1/2 Material Type ​ Liquid Special Terms ​ FRLT-63 ​ Application: Solid Particles, Solid Powder, All kinds Of Dust Environment ​ Measuring Range: 0-70m ​ Connection Process: Flange ​ Medium Temperature: (-40-350)°C ​ Process Pressure: (-0.1-2) MPa Directional ​ Accuracy: ±15mm Signal Output: (4-20)mA HART/RS485 MODBUS ​ Explosion-Proof Grade: Ex ia IIC T1-T6 Ga/Ex d IIC T6 Gb ​ Protection Grade: IP68 ​ Frequency Range: 26GHz ​ Instrument Type ​ Standard Flameproof Intrinsically Safe Explosion-Proof Type ​ Housing/Protection Grade ​ Die-Casting Aluminium With Epoxy Coating/IP68 ​ Die-Casting Aluminium With Epoxy Coating Dual Chamber/IP67 ​ Material ​ Stainless Steel 316L ​ Special Custom ​ Sensor Type ​ Directional Purge Type ​ Universal Purge Type ​ Process Connection 1½" NPT Thread (Directional) Flange DN80 ​ Flange DN100 ​ Flange DN200 ​ Special Custom ​ Antenna Type ​ Horn Antenna Ø98 ​ Horn Antenna Ø96 Longer ​ Special Custom ​ Seal/Process Temperature ​ Viton/(-40 -150)°C ​ Kalre/(-40 -350)°C (With Heat Sink) ​ Electronic Unit ​ (4 -20)mA 24V DC/HART Two-Wire ​ (4 -20)mA 220V AC/Four-Wire Dual Chamber Housing ​ RS485 MODBUS-RTU Communication Protocol/Four-Wire ​ Special Custom ​ Cable Inlet ​ M20*1.5 NPT 1/2 ​ Scene Display/Programmed ​ LCD Without Backlight ​ LCD With Backlight Range ​ (0-5)m ​ (0-10)m ​ (0 -20)m ​ (0 -30)m ​ (0 -70)m ​ Special Custom ​ FRLT-81S ​ Application: Liquid Measurement ​ Measuring Range: 0-10m ​ Antenna Type: Lens/PTFE ​ Mounting Thread: Thread G3.5 ​ Beam Angle: 3° ​ Response Time: <0.6s (Due To Parameter Setting) ​ Medium Temperature: (-40-120)°C ​ DK Value Of Medium: 1.5 ​ Process Pressure: (-0.1-2) MPa ​ Accuracy: <2mm ​ Signal Output: (4-20)mA HART ​ Working Frequency: (76 -81) GHz ​ Explosion Proof Grade: Ex d[ia Ga] IIC T6 Gb ​ Instrument Type Standard Explosion Proof ​ Housing/Protection Grade ​ Aluminum Alloy/IP68 ​ Aluminum Alloy Dual Chamber/IP67 ​ Special Terms ​ Antenna Type ​ G3.5 Lens/PTFE ​ Anti-Corrosive ​ Process Connection Thread G3.5 ​ Flange DN80 PN10 ​ Flange DN80 PN10 Universal Type ​ Flange DN100 PN10 ​ Flange DN100 PN10 Universal Type ​ Special Terms ​ Electronic Unit ​ 2 Wires (4-20) mA 24VDC/HART ​ 4 Wires (4 -20) mA 220V AC ​ Special terms ​ Cable Inlet ​ NPT1/2 M20*1.5 Material Type ​ Solid Special Terms ​
