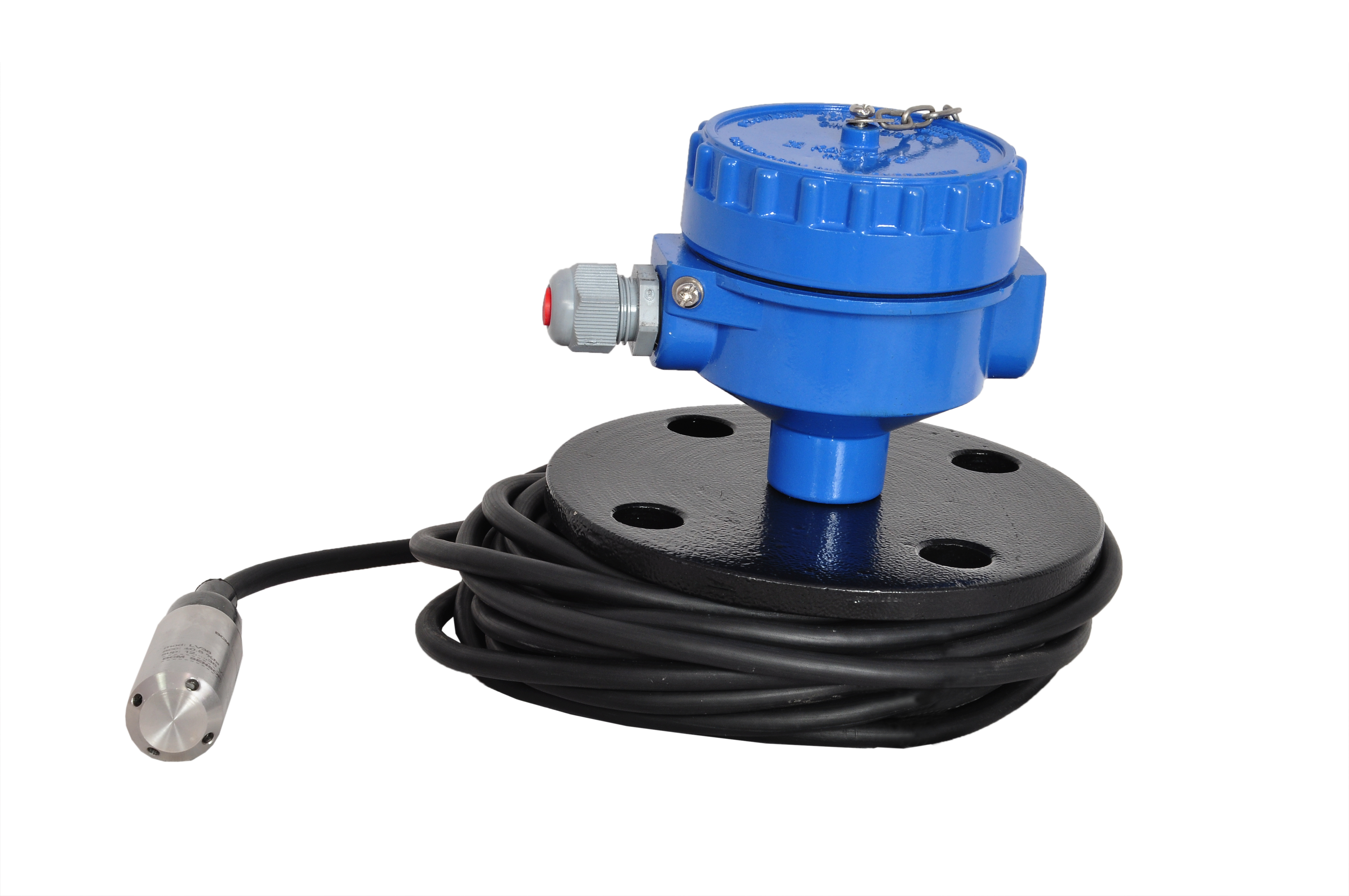

Hydrostatic liquid level transducers and transmitters with flush diaphragm is designed fora wide variety of level measurement applications. This pressure sensor is protected by the stainless steel (SS) housing. Featuring the flush diaphragm makes it suitable to measure viscous media or media with small particles, so as to have diverse measurement applications. The standard reference pressure is gauge (or relative) pressure realized through a vent tube in the cable. The reference pressure can also be absolute pressure on request. We offer wide measuring range from 0~1 to 0~200 meter water column (mH2O) with measuring accuracy of 0.5%fs. Output signal is current loop (4~20mA,standard) Features : Measuring Ranges: 1M, 2M, 3M, 5M, 6M, 8M, 10M, 12M 15M, Higher Length On Request Output Signal: 4-20mA Accuracy: 0.5%Fs Compensated Temperature Range: 0~70Deg C Construction: All Stainless Steel Housing, Rigid And Robust Environment Protection: Ip68
