Features:
- Designed to indicate liquid level inside the tank
- Precision design
- Longer service life
Specifications:
- Indicator length: 100mm to 900 mm
- Max. Temperature : 80oC
- Max. Pressure: Atmospheric
- Mounting flange: 100 Sq. Ms
- Float: 80mm, Solid polyurethane foam
- Indicating tube: 30, Acrylic
Standard Construction:

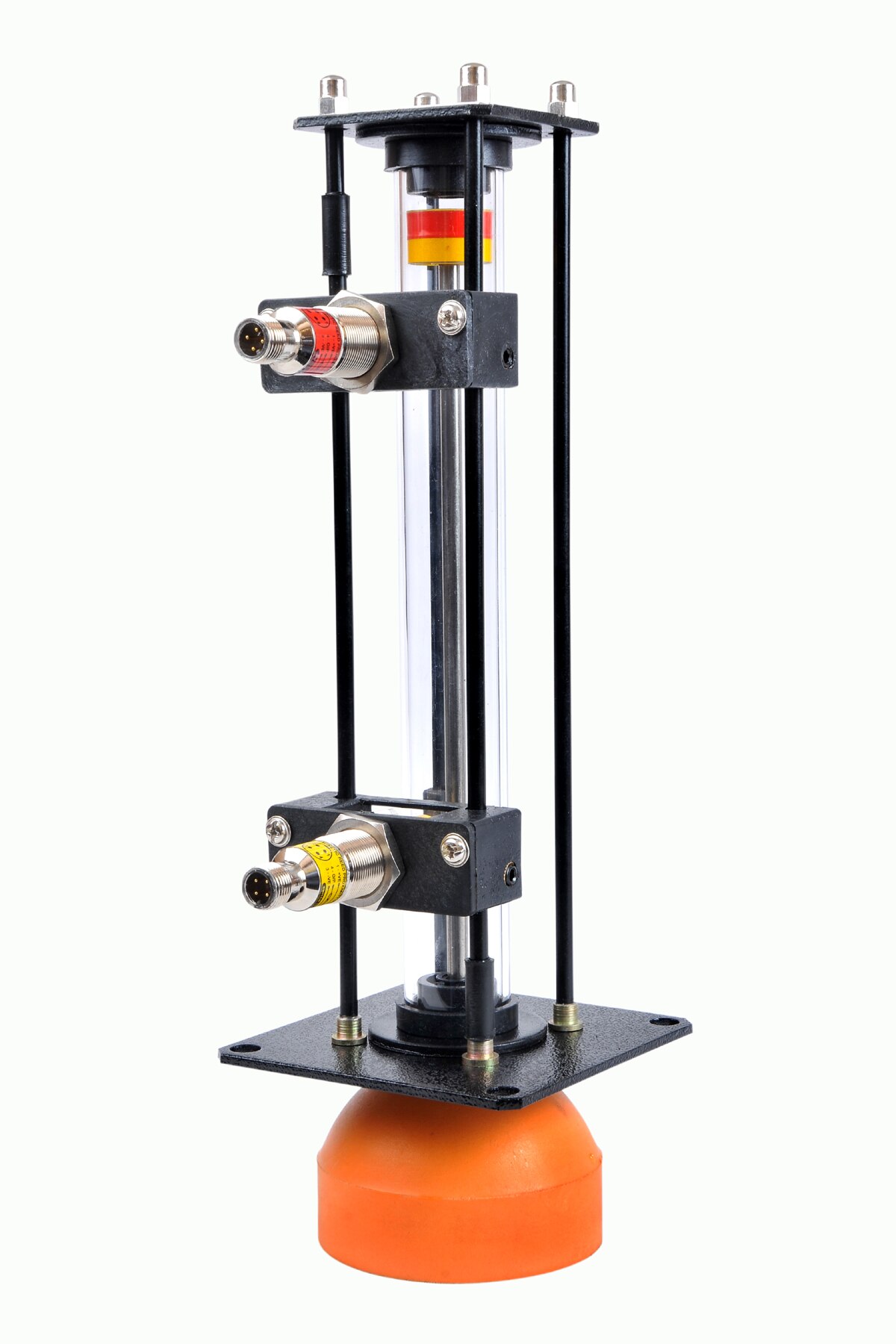

- The standard Oil level indicator is provided with transparent acrylic tube mounted on an MS flange, supported by four SS tie rods. Reed proximity sensors are mounted on two tie rods using mounting brackets.
- The float is made up of solid polyurethane foam of very low density. The float is connected to a piston rod & the other end of which fitted with a circular bicolour disc. The Bicolour disc is assembled with a permanent magnet. Bicolour magnetic assembly performs a dual role of liquid level indication & actuation of Reed proximity sensor
- Application: Coolant, oil, diesel & hydraulic oil applications.
