FILPRO offers Magnetic Level Indicator provides clear, high clarity indication of liquid level. Typically, Magnetic Level Indicator consists of three major components: Float Chamber, Float and Indicator System. Magnetic Level Indicator is principally designed as an alternative to glass level gauges. We offer Magnetic Level Indicator having top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic level indicators are tailor made to various types of construction and sizes. Working Of Magnetic Level Indicator: Magnetic Level Indicator operates on the principle of magnetic field coupling to provide fluid level information. Float chamber is typically constructed with a non-magnetic pipe having process connections that match to the vessel connections. Float size and weight are determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360o magnetic flux field. Specifications: Type: Magnetic Level Gauge Mounting Orientation: Top Mounted, Side Mounted & Top – Bottom Indicator System: Bi-colour Rotating Roller / Capsule Housing for Indicator: For Bi-colour Roller – RAIL in Aluminium or SS Housing System For Capsule – Heavy Walled Glass Tube in Aluminium / SS Housing MOC of Indicator: ABS Plastic / SS Float Chamber: Non-Magnetic Standard pipe MOC of Float Chamber: SS 304, SS 316, SS 316L, PP, PVDF, Others on request Float: SS 304, SS 316, SS 316L, PP, PVDF, Others on request Scale: Aluminium / SS / Acrylic engraved in mm Process Connection: Flanged in various sizes Vent: 1⁄2” Plugged / 1⁄2” Needle Valve / 1⁄2” Ball Valve Drain: 1⁄2” Plugged / 1⁄2” Needle Valve / 1⁄2” Ball Valve Limit Switch Assembly: Snap Acting 1 SPDT Micro switch, 5A, 230 VAC or 24 VDC X 0.7A Reed Switch Switch Housing: Aluminium Die Cast Weatherproof to IP – 65 Aluminium Die Cast Explosion proof suitable for Group IIA, IIB Aluminium Die Cast Explosion proof suitable for Group IIC Electrical Cable Entry: 3⁄4” ET (F) Centre to Centre Distance: Bi-colour Rollers – up to 6000 mm, Capsule – up to 6000 mm Max. Operating Pressure: 15 Kg/cm2 (others on request) Performance: Reliable for aggressive, combustible, toxic, high pressure and high temperature (up to 150°C) liquid storage tanks. Side mounted magnetic level indicator most reliable and safe for a hazardous application like LPG, Oleum, Chlorosulfuric Acid, HNO2, and Solvents like benzene, Toluene alcohols. Useful for Acid, Alkali, Solvent, Oils, Vegetable Oil.

Atex approved Float Level Transmitter : Over All Length: 300mm to 5000mm Input: 16V DC to 30V DC Output: 4-20mA / 0-10V DC Resolution: 5mm / 10mm Enclosure: Cast Aluminium, IP66 Wetted parts: SS 304 / SS 316 / SS 316L / Titanium Mounting: Flange / Thread / Tri clover Accracy: +/- 0.5% FS Approval: EX II 1G Ex ia IIB T4 Ga EX II 2G Ex db IIB T4 Gb

Ligo fuel sensor for monitoring Diesel and Petrol level in vehicle fuel tanks and DG sets. Highly accurate upto 99.5% Available in length : 700mm, 1000mm and 1500mm upto 6000mm Input: 9-37V DC Output: 0-5V DC, 0-10V DC, RS 485, RS 232 Resolution: 12 bit

Stainless steel Miniature Level Switch is a compact construction, suitable for mounting vertically. SS Miniature Level Switch consists of a Reed Switch housed inside the guide tube & a permanent magnet inside the Float assembly. The Float moving with the liquid level makes (NC) & breaks (NO) the Reed Switch contact. Miniature Level Switch is used for sensing low, high or both high & low level in tanks. Applications: Water Diesel Hydraulic Oil Edible Oil Chemicals & Pharma

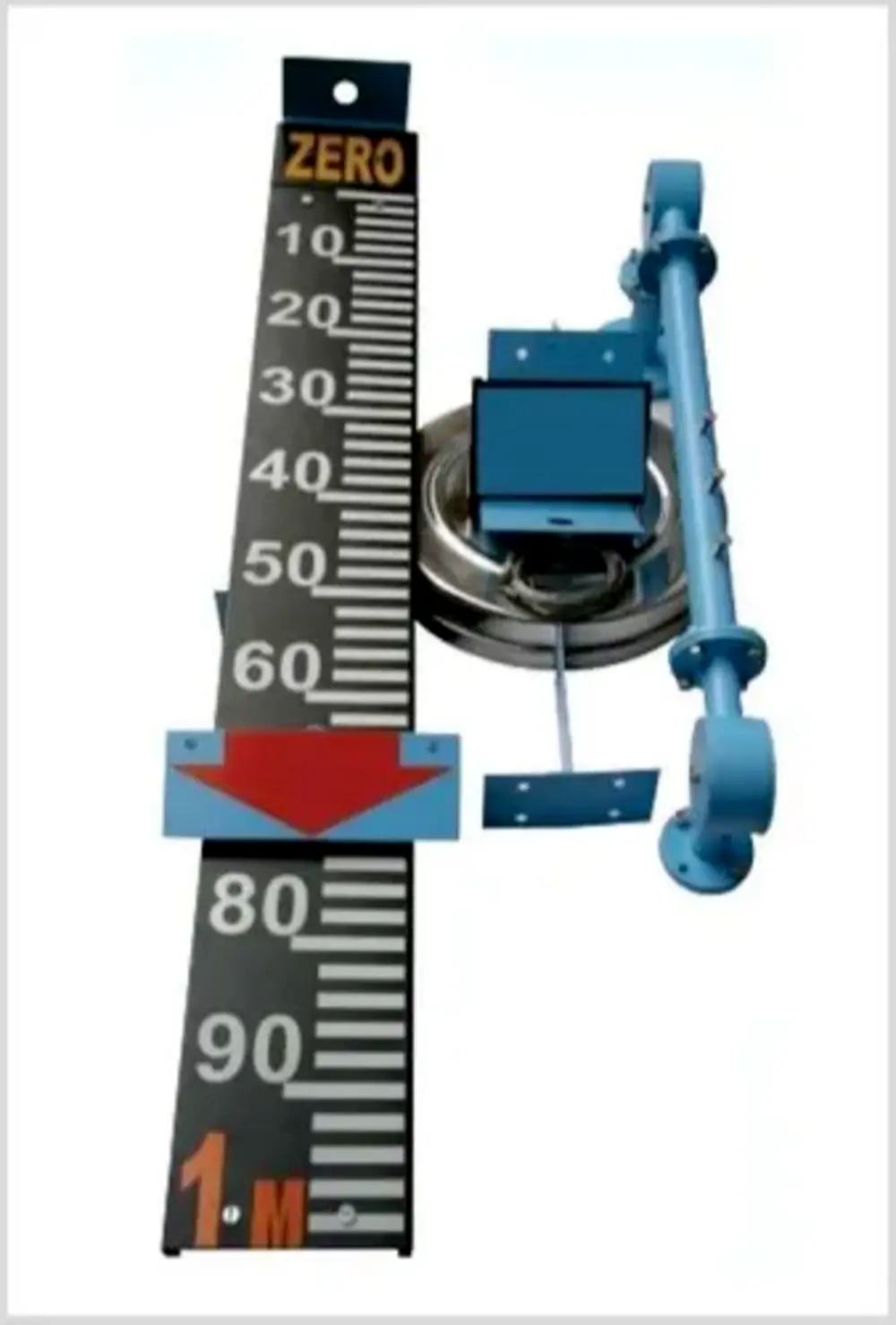

The Float & Board Level Indicators consists of a float connected to a pointerthrough a rope via a set of pulleys. The pointer glides over a calibrated gaugeboard, positioned parallel to the tank. The float accurately follows liquid levelvariations in vertical direction. The vertical float movement is such that thepointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’when ‘FULL’. Measuring Range : Up to 25 meters. For more than 25 meters please consult factory.Float : 12 “ or 15 “Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalsLeast Count : 5mmMaximum Temperature :80°C (PP) / 150°C (SS)Maximum Pressure:5 Kg/cm2Float Wire Rope : Ø1.6mm x SS 316 / SS 304 (multistrand) / Ø6mm x PP (multistrand)Installation: Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid: > 0.75Connecting Pipe : Carbon Steel Powder Coated Local Indication: Direct: Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Follower Magnet : Red Capsule moving inside indicator tube. White annular line on capsule indicates ‘Level’.Pulley Assemblies: Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure (2 Nos.) Protection Conduit: Horizontal Limb: GI pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb: GI pipe 25NB x 195mm & 100mm longProcess Connections: 1” 150#Gauge Board Brackets: Powder coated MS

Radar Level Transmitter FILPRO offers professional Radar Level Transmitter. ​ Our radar level transmitter uses radar to continuously measure non-contact liquid level, the sensor sends microwave signals to the medium from above. ​ The surface of the medium reflects the signal back to the sensor. ​ The radar sensor uses the received microwave signal to determine the distance to the product surface and calculate the height from it. ​ Radar level transducer is an excellent substitute for differential pressure instruments, magnetostrictive, radio frequency admittance, and Ultrasonic level transmitter. ​ The radar level transmitter is not affected by vacuum, dust, temperature, pressure changes, steam and falling gases. ​ An ISO 9001:2008 Company ​ FRLT-80S ​ Application: Liquid Measurement ​ Measuring Range: 0~10m ​ Antenna Type: Lens/PTFE ​ Mounting Thread: Thread G1.5 Beam Angle: 8° ​ Response Time: <0.6s (Due To Parameter Setting) ​ Medium Temperature: (-40 ~ 120) °C ​ DK Value Of Medium: 1.5 ​ Process Pressure: (-0.1 -0.3) MPa ​ Accuracy: <2mm ​ Signal Output: (4-20) mA HART ​ Working Frequency: (76 -81) GHz ​ Explosion Proof Grade: Ex d[iaGa] IIC T6 Gb ​ Instrument Type Standard Explosion-Proof ​ Housing/Protection Grade ​ Aluminum Alloy/IP68 ​ Aluminum Alloy Dual Chamber/IP67 ​ Special Terms ​ Antenna Type ​ Lens/PTFE G1.5 ​ Anti-Corrosive ​ Process Connection Thread G1.5 ​ Special Terms ​ Electronic Unit ​ 2 Wires (4 ~ 20) mA 24VDC/HART ​ 4 Wires (4-20) mA 220V AC ​ Special terms ​ Cable Inlet ​ M20*1.5 NPT1/2 Material Type ​ Liquid Special Terms ​ FRLT-63 ​ Application: Solid Particles, Solid Powder, All kinds Of Dust Environment ​ Measuring Range: 0-70m ​ Connection Process: Flange ​ Medium Temperature: (-40-350)°C ​ Process Pressure: (-0.1-2) MPa Directional ​ Accuracy: ±15mm Signal Output: (4-20)mA HART/RS485 MODBUS ​ Explosion-Proof Grade: Ex ia IIC T1-T6 Ga/Ex d IIC T6 Gb ​ Protection Grade: IP68 ​ Frequency Range: 26GHz ​ Instrument Type ​ Standard Flameproof Intrinsically Safe Explosion-Proof Type ​ Housing/Protection Grade ​ Die-Casting Aluminium With Epoxy Coating/IP68 ​ Die-Casting Aluminium With Epoxy Coating Dual Chamber/IP67 ​ Material ​ Stainless Steel 316L ​ Special Custom ​ Sensor Type ​ Directional Purge Type ​ Universal Purge Type ​ Process Connection 1½" NPT Thread (Directional) Flange DN80 ​ Flange DN100 ​ Flange DN200 ​ Special Custom ​ Antenna Type ​ Horn Antenna Ø98 ​ Horn Antenna Ø96 Longer ​ Special Custom ​ Seal/Process Temperature ​ Viton/(-40 -150)°C ​ Kalre/(-40 -350)°C (With Heat Sink) ​ Electronic Unit ​ (4 -20)mA 24V DC/HART Two-Wire ​ (4 -20)mA 220V AC/Four-Wire Dual Chamber Housing ​ RS485 MODBUS-RTU Communication Protocol/Four-Wire ​ Special Custom ​ Cable Inlet ​ M20*1.5 NPT 1/2 ​ Scene Display/Programmed ​ LCD Without Backlight ​ LCD With Backlight Range ​ (0-5)m ​ (0-10)m ​ (0 -20)m ​ (0 -30)m ​ (0 -70)m ​ Special Custom ​ FRLT-81S ​ Application: Liquid Measurement ​ Measuring Range: 0-10m ​ Antenna Type: Lens/PTFE ​ Mounting Thread: Thread G3.5 ​ Beam Angle: 3° ​ Response Time: <0.6s (Due To Parameter Setting) ​ Medium Temperature: (-40-120)°C ​ DK Value Of Medium: 1.5 ​ Process Pressure: (-0.1-2) MPa ​ Accuracy: <2mm ​ Signal Output: (4-20)mA HART ​ Working Frequency: (76 -81) GHz ​ Explosion Proof Grade: Ex d[ia Ga] IIC T6 Gb ​ Instrument Type Standard Explosion Proof ​ Housing/Protection Grade ​ Aluminum Alloy/IP68 ​ Aluminum Alloy Dual Chamber/IP67 ​ Special Terms ​ Antenna Type ​ G3.5 Lens/PTFE ​ Anti-Corrosive ​ Process Connection Thread G3.5 ​ Flange DN80 PN10 ​ Flange DN80 PN10 Universal Type ​ Flange DN100 PN10 ​ Flange DN100 PN10 Universal Type ​ Special Terms ​ Electronic Unit ​ 2 Wires (4-20) mA 24VDC/HART ​ 4 Wires (4 -20) mA 220V AC ​ Special terms ​ Cable Inlet ​ NPT1/2 M20*1.5 Material Type ​ Solid Special Terms ​

Tubular Glass Level Indicator is used for visual level indication of liquid in storage and process tanks. Our company is among the most sought after offering Tubular Glass Level Indicator to the clients. Tubular Glass Level Indicator is designed by high skilled professionals using optimum quality components and modern technology at the well-developed manufacturing unit. Offered range is checked stringently on certain quality stages before final delivery. Features: Long lasting Robust construction Efficiency Specifications : Indicator length: 300 mm to 3000mm Max. Temperature: 200 Deg C Max. Pressure: 15 kg/sq cm Mounting flange: 1" ANSI Isolation valve: Available Indicating tube: 19mm Borosilicate glass tube Allication: Water, Diesel, Chemical, Oil, Edible Oil, Acid, Alkali, Solvents MOC: MS, SS 304, SS 316, PP

Filpro offers most reliable, cost effective Side Mounted Level Switch for point level sensing. It is used to control the liquid level in vessels / storage tanks / machines containing corrosive or noncorrosive liquids. It is used to control pump, provide Alarm, for valve control or level indication. Features: Easy to install Reliable Available with different flange size Available in different MOC Principle: The float lever carries a permanent magnet which is repelled by a similar magnet mounted in the switch housing. The magnet having the same pole directed towards each other are separated by a nonmagnetic diaphragm. The glandless construction offers excellent sealing. Construction: It consists of 3 main parts: Housing with Micro Switch Mounting Flange Float Assembly Applications: Water, Diesel, Kerosene, Furnace oil, Edible Oil, Fuels, Chemical, Solvents, Syrup, Acid, Alkali, Solvents, Petrochemical

Oil Level Indicator is designed to indicate the coolant and hydraulic oil level inside the tank with a visual indicator above the tank. Oil Level Indicator is very useful in visually monitoring the liquid level from a distance. Reed Proximity sensor is fitted to Oil Level Indicator for remote feedback of high, low or multiple levels of the tank. The Reed Proximity Sensors are easily adjustable at site & have Latching technology. Features: Designed to indicate liquid level inside the tank Precision design Longer service life Specifications: Indicator length: 100mm to 900 mm Max. Temperature : 80oC Max. Pressure: Atmospheric Mounting flange: 100 Sq. Ms Float: 80mm, Solid polyurethane foam Indicating tube: 30, Acrylic Standard Construction: The standard Oil level indicator is provided with transparent acrylic tube mounted on an MS flange, supported by four SS tie rods. Reed proximity sensors are mounted on two tie rods using mounting brackets. The float is made up of solid polyurethane foam of very low density. The float is connected to a piston rod & the other end of which fitted with a circular bicolour disc. The Bicolour disc is assembled with a permanent magnet. Bicolour magnetic assembly performs a dual role of liquid level indication & actuation of Reed proximity sensor Application: Coolant, oil, diesel & hydraulic oil applications.
