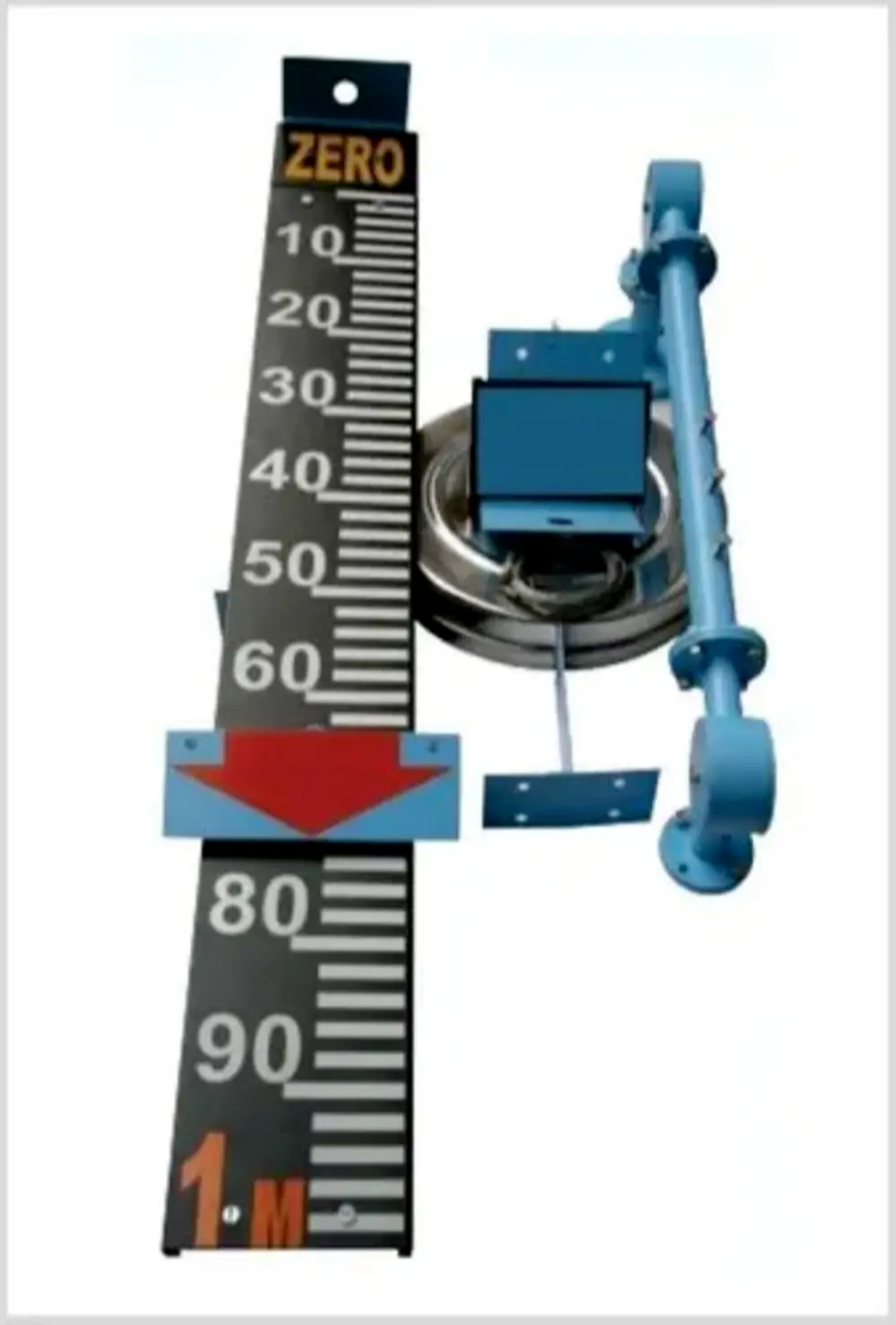

The Float & Board Level Indicators consists of a float connected to a pointerthrough a rope via a set of pulleys. The pointer glides over a calibrated gaugeboard, positioned parallel to the tank. The float accurately follows liquid levelvariations in vertical direction. The vertical float movement is such that thepointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’when ‘FULL’. Measuring Range : Up to 25 meters. For more than 25 meters please consult factory.Float : 12 “ or 15 “Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalsLeast Count : 5mmMaximum Temperature :80°C (PP) / 150°C (SS)Maximum Pressure:5 Kg/cm2Float Wire Rope : Ø1.6mm x SS 316 / SS 304 (multistrand) / Ø6mm x PP (multistrand)Installation: Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid: > 0.75Connecting Pipe : Carbon Steel Powder Coated Local Indication: Direct: Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Follower Magnet : Red Capsule moving inside indicator tube. White annular line on capsule indicates ‘Level’.Pulley Assemblies: Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure (2 Nos.) Protection Conduit: Horizontal Limb: GI pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb: GI pipe 25NB x 195mm & 100mm longProcess Connections: 1” 150#Gauge Board Brackets: Powder coated MS

Float Level Transmitter Float Level Transmitters Are Ideal For Continuous Level Monitoring In Water, Diesel, Chemical And Oils For Accurate Level Measurement. The Output Is Not Affected By Liquid Type, Temperature, Pressure And Other Physical Parameters. The Transmitter Is Factory Calibrated And Is Ready To Use. Construction: Float Level Transmitter Consists Of Non Magnetic Sealed Stem Containing Series Of Reed Switches And Resistor, Float Carrying Magnet, Mounting Adaptor (Or Flange) And Enclosure Containing Electronics. Consider Our Float Level Transmitters For All Your Continuous Liquid level Monitoring Needs Like Water, Diesel, Lube Oils, Fuels, Chemicals And Petrochemical Liquids. Here Are Just Few Areas Where Transmitter Can Be Used. Utilities, Beverage Industry, Medical, Pharmaceuticals, Food Processing, Breweries, Chemical, Petrochemical, Refinery Specification: Overall Length: 300 mm to 5000mm Measuring Error: ±0.25 % or Span Output Temperature Coefficient: ±0.007% / oC Resolution: 5mm / 10mm Ambient Temperature: -40oC to 60oC Liquid Temp. Range: -40oC to 120oC Liquid Min. Density: 0.8 gm/cc Max. Pressure: 10 kg/cm2 Protection category: Weatherproof Ip66 to IS: 2147 (or) Flame Proof Gr. IIA & IIB to IS: 2148 Terminals: Max. 1.5mm2 Flexible Cable Entry: PG11 for weather Proof ¾" Et for Flameproof (Glands not supplied) Current Output: 2 wire, 4... 20 A 3 wire, 0-10 Vdc Process Connection: Threaded Flanged Tri-clamp Others Excitation Voltage: 10-36 V DC Loop Resistance: Max. 1200 Ohms

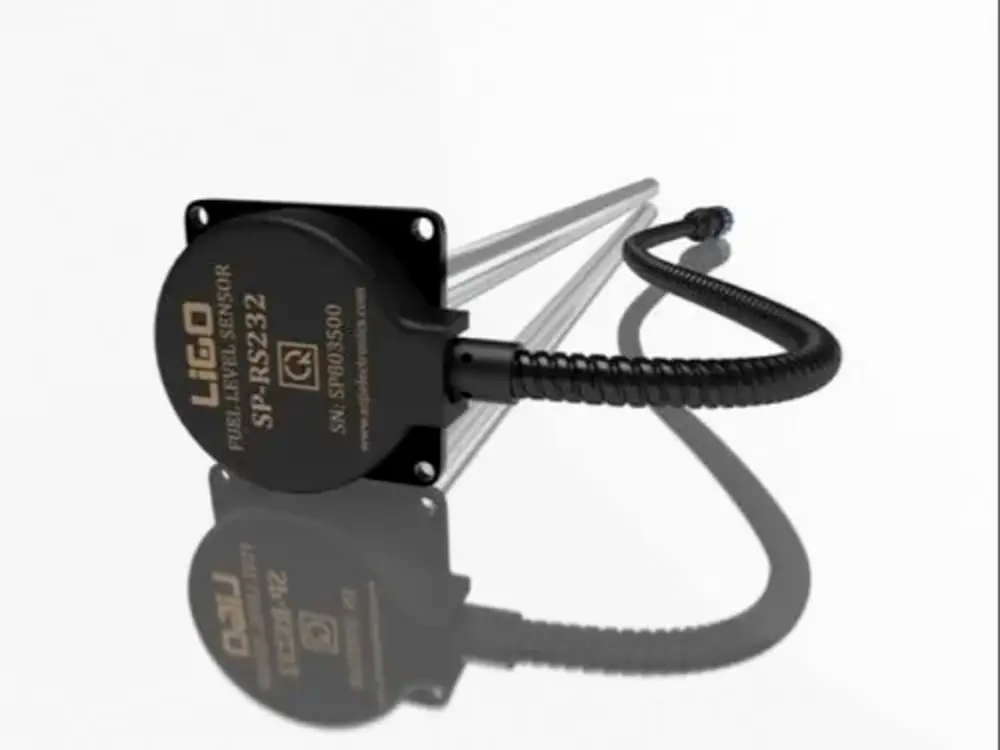

Ligo fuel sensor for monitoring Diesel and Petrol level in vehicle fuel tanks and DG sets. Highly accurate upto 99.5% Available in length : 700mm, 1000mm and 1500mm upto 6000mm Input: 9-37V DC Output: 0-5V DC, 0-10V DC, RS 485, RS 232 Resolution: 12 bit

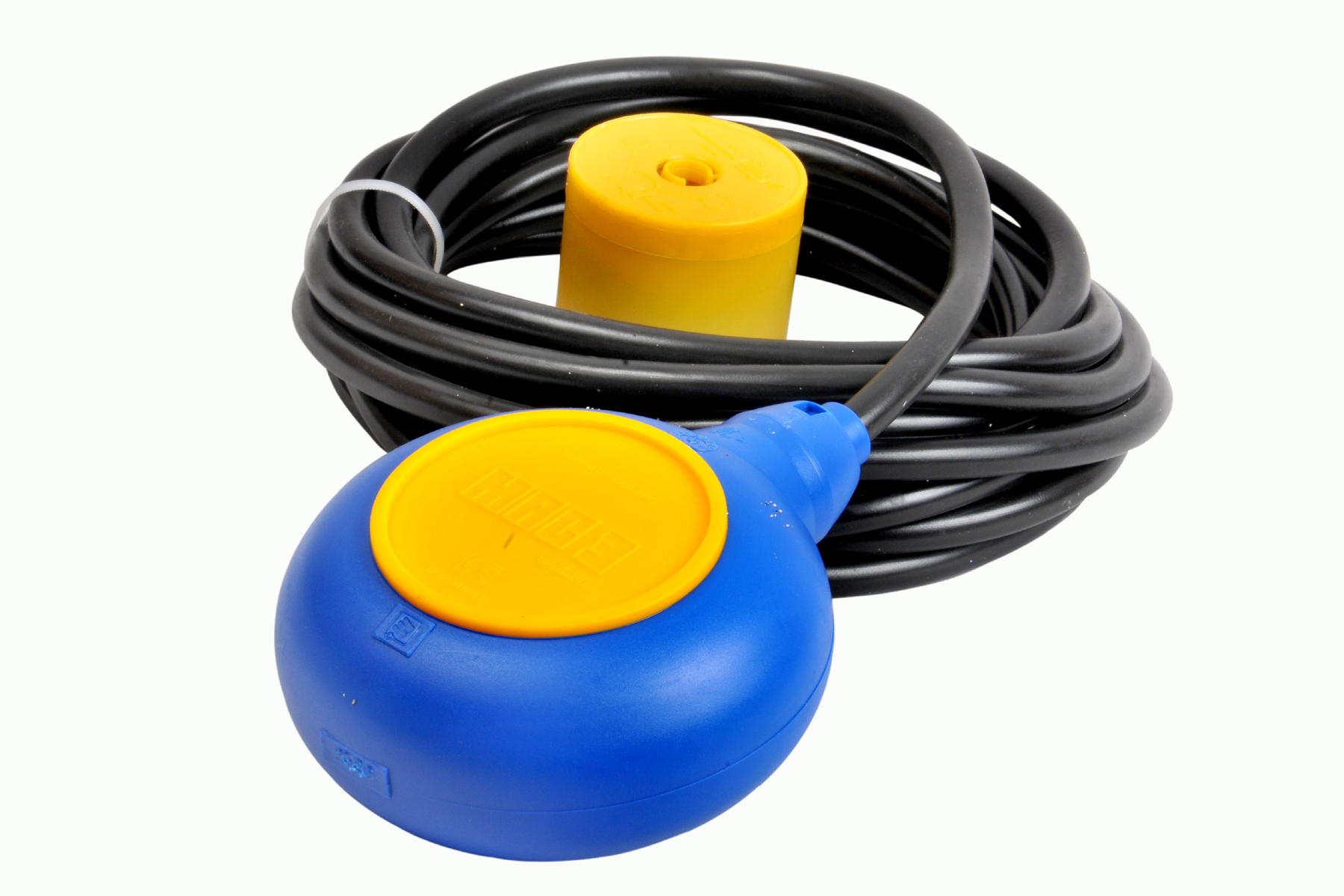

Cable Float Switch is mainly used for the automatic working of small pumps and cellar emptying pumps in liquids a little bit agitated. Cable Float Switch has the technical advantages as the devices are for intensive uses and have an 110° working angle. Cable Float Switch is also very often used to connect a sound or light alarm. Features: Specifically used for the automatic working of small pumps and cellar emptying pumps Efficient performance Sturdy construction

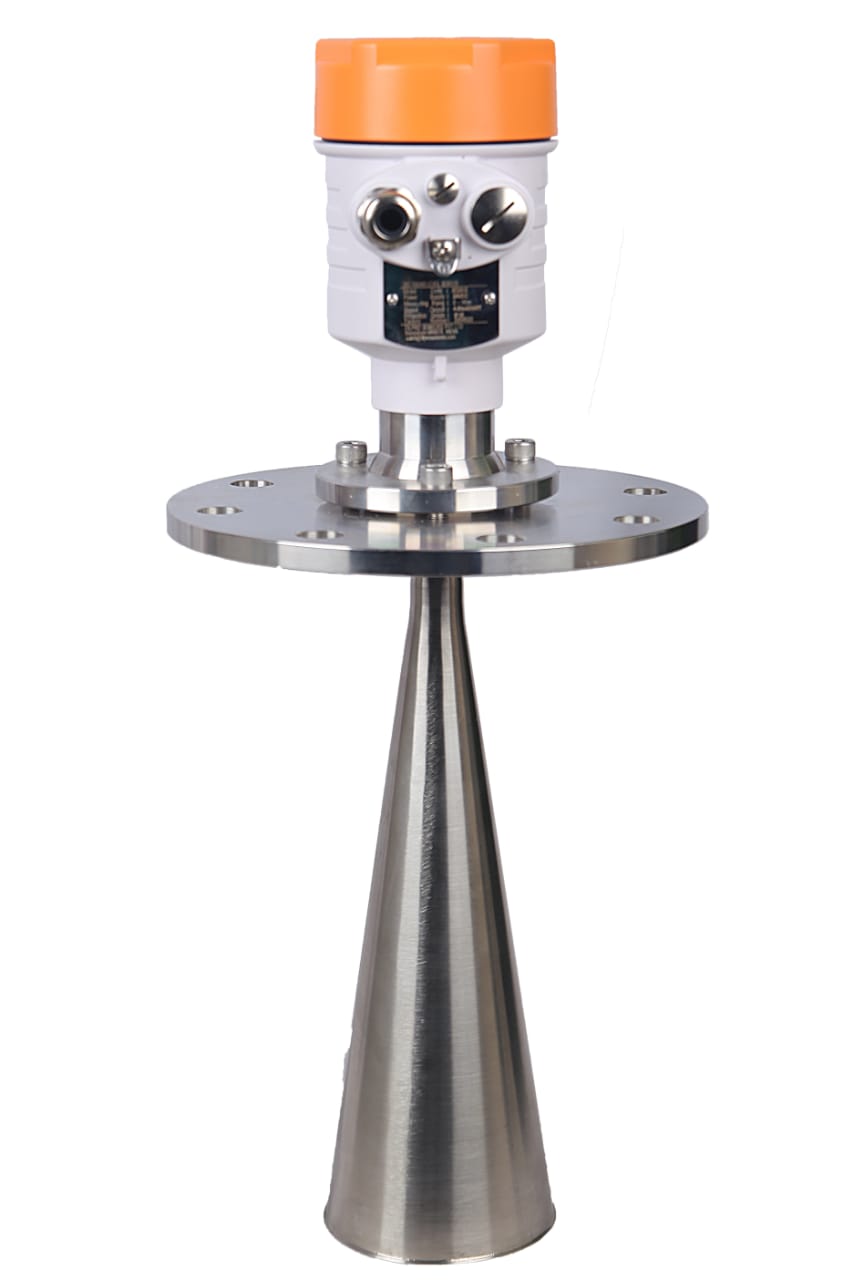

Radar Level Transmitter FILPRO offers professional Radar Level Transmitter. ​ Our radar level transmitter uses radar to continuously measure non-contact liquid level, the sensor sends microwave signals to the medium from above. ​ The surface of the medium reflects the signal back to the sensor. ​ The radar sensor uses the received microwave signal to determine the distance to the product surface and calculate the height from it. ​ Radar level transducer is an excellent substitute for differential pressure instruments, magnetostrictive, radio frequency admittance, and Ultrasonic level transmitter. ​ The radar level transmitter is not affected by vacuum, dust, temperature, pressure changes, steam and falling gases. ​ An ISO 9001:2008 Company ​ FRLT-80S ​ Application: Liquid Measurement ​ Measuring Range: 0~10m ​ Antenna Type: Lens/PTFE ​ Mounting Thread: Thread G1.5 Beam Angle: 8° ​ Response Time: <0.6s (Due To Parameter Setting) ​ Medium Temperature: (-40 ~ 120) °C ​ DK Value Of Medium: 1.5 ​ Process Pressure: (-0.1 -0.3) MPa ​ Accuracy: <2mm ​ Signal Output: (4-20) mA HART ​ Working Frequency: (76 -81) GHz ​ Explosion Proof Grade: Ex d[iaGa] IIC T6 Gb ​ Instrument Type Standard Explosion-Proof ​ Housing/Protection Grade ​ Aluminum Alloy/IP68 ​ Aluminum Alloy Dual Chamber/IP67 ​ Special Terms ​ Antenna Type ​ Lens/PTFE G1.5 ​ Anti-Corrosive ​ Process Connection Thread G1.5 ​ Special Terms ​ Electronic Unit ​ 2 Wires (4 ~ 20) mA 24VDC/HART ​ 4 Wires (4-20) mA 220V AC ​ Special terms ​ Cable Inlet ​ M20*1.5 NPT1/2 Material Type ​ Liquid Special Terms ​ FRLT-63 ​ Application: Solid Particles, Solid Powder, All kinds Of Dust Environment ​ Measuring Range: 0-70m ​ Connection Process: Flange ​ Medium Temperature: (-40-350)°C ​ Process Pressure: (-0.1-2) MPa Directional ​ Accuracy: ±15mm Signal Output: (4-20)mA HART/RS485 MODBUS ​ Explosion-Proof Grade: Ex ia IIC T1-T6 Ga/Ex d IIC T6 Gb ​ Protection Grade: IP68 ​ Frequency Range: 26GHz ​ Instrument Type ​ Standard Flameproof Intrinsically Safe Explosion-Proof Type ​ Housing/Protection Grade ​ Die-Casting Aluminium With Epoxy Coating/IP68 ​ Die-Casting Aluminium With Epoxy Coating Dual Chamber/IP67 ​ Material ​ Stainless Steel 316L ​ Special Custom ​ Sensor Type ​ Directional Purge Type ​ Universal Purge Type ​ Process Connection 1½" NPT Thread (Directional) Flange DN80 ​ Flange DN100 ​ Flange DN200 ​ Special Custom ​ Antenna Type ​ Horn Antenna Ø98 ​ Horn Antenna Ø96 Longer ​ Special Custom ​ Seal/Process Temperature ​ Viton/(-40 -150)°C ​ Kalre/(-40 -350)°C (With Heat Sink) ​ Electronic Unit ​ (4 -20)mA 24V DC/HART Two-Wire ​ (4 -20)mA 220V AC/Four-Wire Dual Chamber Housing ​ RS485 MODBUS-RTU Communication Protocol/Four-Wire ​ Special Custom ​ Cable Inlet ​ M20*1.5 NPT 1/2 ​ Scene Display/Programmed ​ LCD Without Backlight ​ LCD With Backlight Range ​ (0-5)m ​ (0-10)m ​ (0 -20)m ​ (0 -30)m ​ (0 -70)m ​ Special Custom ​ FRLT-81S ​ Application: Liquid Measurement ​ Measuring Range: 0-10m ​ Antenna Type: Lens/PTFE ​ Mounting Thread: Thread G3.5 ​ Beam Angle: 3° ​ Response Time: <0.6s (Due To Parameter Setting) ​ Medium Temperature: (-40-120)°C ​ DK Value Of Medium: 1.5 ​ Process Pressure: (-0.1-2) MPa ​ Accuracy: <2mm ​ Signal Output: (4-20)mA HART ​ Working Frequency: (76 -81) GHz ​ Explosion Proof Grade: Ex d[ia Ga] IIC T6 Gb ​ Instrument Type Standard Explosion Proof ​ Housing/Protection Grade ​ Aluminum Alloy/IP68 ​ Aluminum Alloy Dual Chamber/IP67 ​ Special Terms ​ Antenna Type ​ G3.5 Lens/PTFE ​ Anti-Corrosive ​ Process Connection Thread G3.5 ​ Flange DN80 PN10 ​ Flange DN80 PN10 Universal Type ​ Flange DN100 PN10 ​ Flange DN100 PN10 Universal Type ​ Special Terms ​ Electronic Unit ​ 2 Wires (4-20) mA 24VDC/HART ​ 4 Wires (4 -20) mA 220V AC ​ Special terms ​ Cable Inlet ​ NPT1/2 M20*1.5 Material Type ​ Solid Special Terms ​

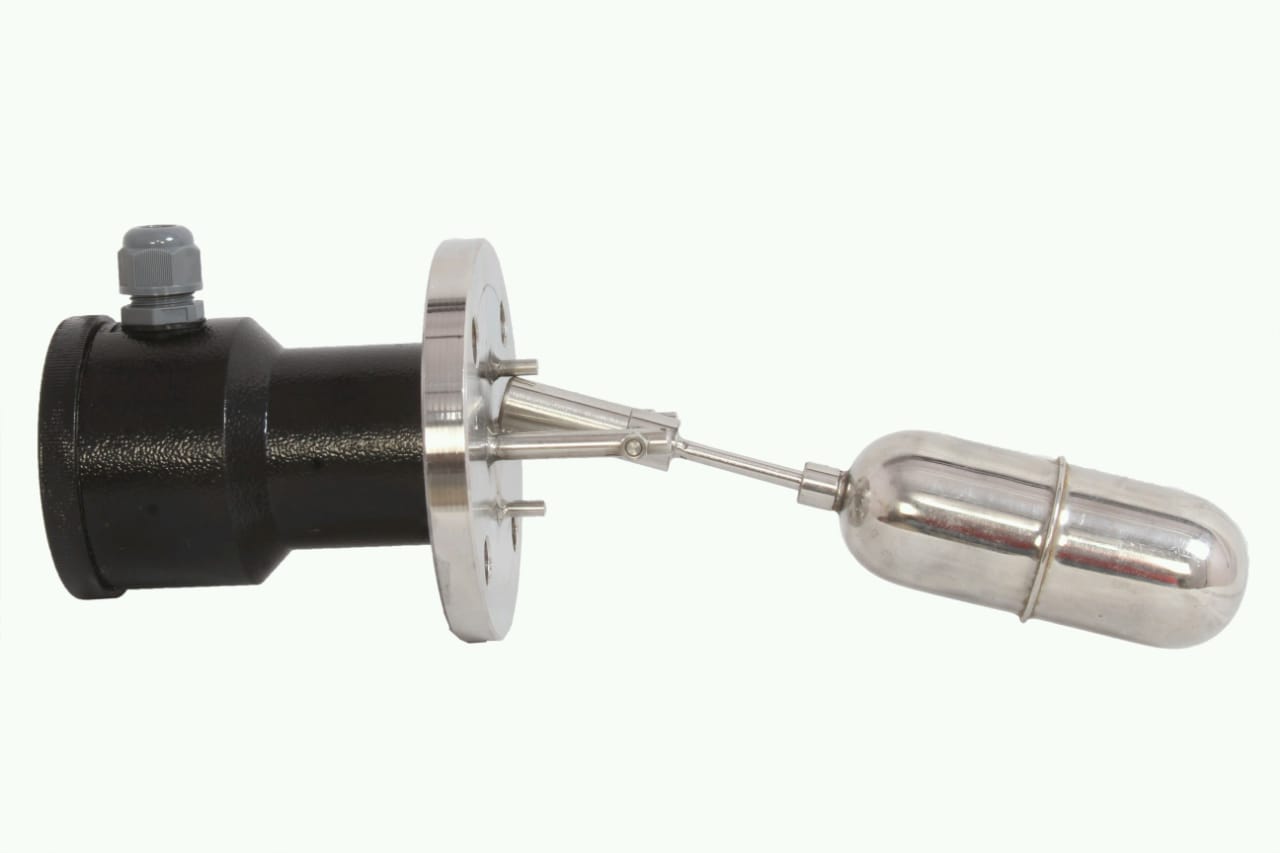

Filpro offers most reliable, cost effective Side Mounted Level Switch for point level sensing. It is used to control the liquid level in vessels / storage tanks / machines containing corrosive or noncorrosive liquids. It is used to control pump, provide Alarm, for valve control or level indication. Features: Easy to install Reliable Available with different flange size Available in different MOC Principle: The float lever carries a permanent magnet which is repelled by a similar magnet mounted in the switch housing. The magnet having the same pole directed towards each other are separated by a nonmagnetic diaphragm. The glandless construction offers excellent sealing. Construction: It consists of 3 main parts: Housing with Micro Switch Mounting Flange Float Assembly Applications: Water, Diesel, Kerosene, Furnace oil, Edible Oil, Fuels, Chemical, Solvents, Syrup, Acid, Alkali, Solvents, Petrochemical

Oil Level Indicator is designed to indicate the coolant and hydraulic oil level inside the tank with a visual indicator above the tank. Oil Level Indicator is very useful in visually monitoring the liquid level from a distance. Reed Proximity sensor is fitted to Oil Level Indicator for remote feedback of high, low or multiple levels of the tank. The Reed Proximity Sensors are easily adjustable at site & have Latching technology. Features: Designed to indicate liquid level inside the tank Precision design Longer service life Specifications: Indicator length: 100mm to 900 mm Max. Temperature : 80oC Max. Pressure: Atmospheric Mounting flange: 100 Sq. Ms Float: 80mm, Solid polyurethane foam Indicating tube: 30, Acrylic Standard Construction: The standard Oil level indicator is provided with transparent acrylic tube mounted on an MS flange, supported by four SS tie rods. Reed proximity sensors are mounted on two tie rods using mounting brackets. The float is made up of solid polyurethane foam of very low density. The float is connected to a piston rod & the other end of which fitted with a circular bicolour disc. The Bicolour disc is assembled with a permanent magnet. Bicolour magnetic assembly performs a dual role of liquid level indication & actuation of Reed proximity sensor Application: Coolant, oil, diesel & hydraulic oil applications.

The Magnetic Level Switch consists of the non-abrasive float carrying permanent magnet and non-ferrous stem carrying one. Two or multiple reed switches. The float glides along the stem and when the float nears the vicinity of reed switch the magnetic field of permanent magnet forces the contact to close, thereby completing the external electrical circuit. We offer Magnetic Level Switch at a reasonable price. Applications: Due to simple design, reliability and with only one moving part i.e., Magnetic float, Magnetic Level Switch finds application in various liquids were accurate and repeated liquid level control is called for. Magnetic Level Switch is suitable for storage tanks, utility tanks, process tanks, hydraulic power pack, centralized lubrication system, fuel tanks, cooling tower, textile, pharmaceuticals and special purpose machines. Technical specifications: Type of float: 34 x 36 Pu foam, 40 SS 316, Float, 52 SS 316, 68 SS 316 Temperature 0Deg C to + 80Deg C / -25Deg C to + 125Deg C Pressure Max. Atmospheric 20 kg/cm2 Stem: SS 304, SS 316, PP, PTFE, Titanium Flange Size: Any table flange and size Max. Length 3000mm Accuracy +2mm Set point 1 to 10

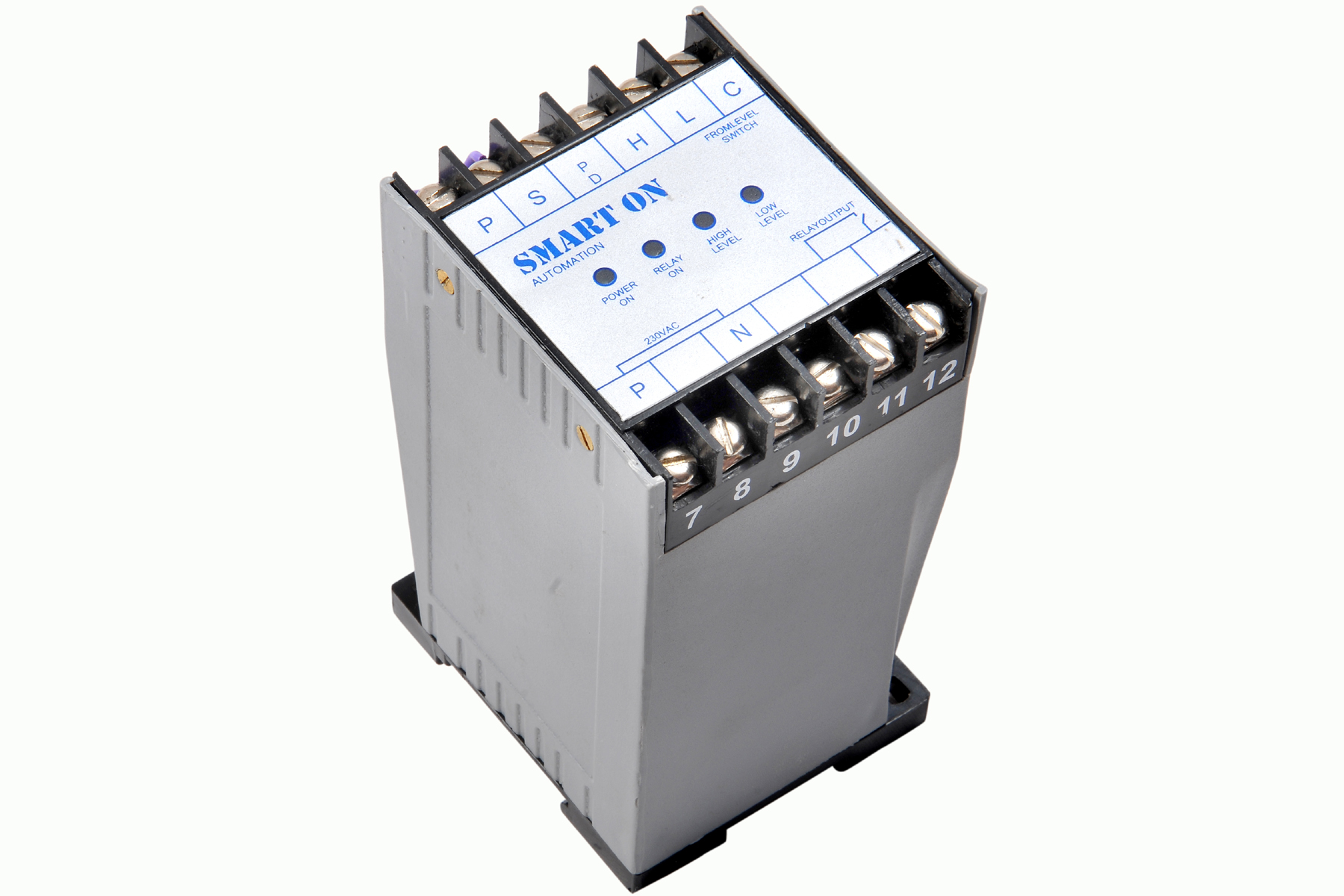

Filpro Sensors Pvt Ltd manufactures industrial Level Controller (Smart On) to automatically start & stop the pump. For this tank has to be fitted with our Magnetic Float Switch or Cable Float Switch. Liquid Level Controller (Smart On) provides LED Indication for Power ON, Relay ON (Motor ON), Tank High & Tank Low. The controller has provision to select pump mode as Pump UP or Pump Down. In Pump UP mode, the pump starts at Low Level & Stops at High Level. Pump UP mode is used to fill the tank. In Pump DOWN mode, the pump starts at High Level & Stops at Low Level. Pump DOWN mode is used to empty the tank. Specifications: Input Supply: 230V AC Sensor Input: From Magnetic Float Switch or Cable Float Switch Output: 1NO contact rated for 230V AC, 5A Mounting: Back panel 35mm din rail mounting Mode: Pump UP ( Filling ) or PUMP Down ( Emptying)
