Level Indicator

Float and Board

In stock•cod not available

Contact Us

Phone Number

08045133883

Please keep 0 before dialling the number.

Email Address sales@filprosensors.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address Indore, Madhya Pradesh, India

Indore, India, 451010

Description

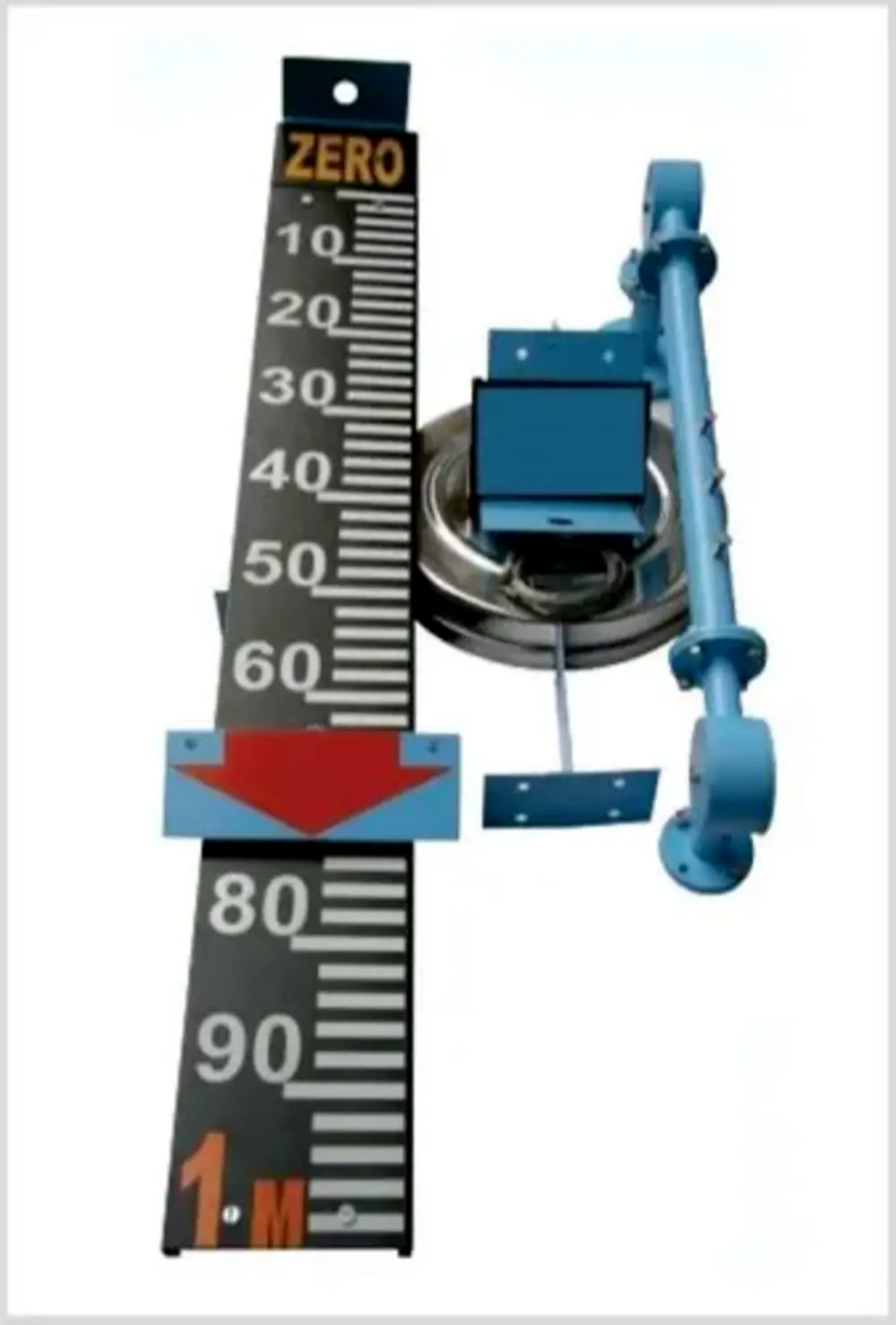

The Float & Board Level Indicators consists of a float connected to a pointerthrough a rope via a set of pulleys. The pointer glides over a calibrated gaugeboard, positioned parallel to the tank. The float accurately follows liquid levelvariations in vertical direction. The vertical float movement is such that thepointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’when ‘FULL’. Measuring Range : Up to 25 meters. For more than 25 meters please consult factory.Float : 12 “ or 15 “Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalsLeast Count : 5mmMaximum Temperature :80°C (PP) / 150°C (SS)Maximum Pressure:5 Kg/cm2Float Wire Rope : Ø1.6mm x SS 316 / SS 304 (multistrand) / Ø6mm x PP (multistrand)Installation: Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid: > 0.75Connecting Pipe : Carbon Steel Powder Coated Local Indication: Direct: Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Follower Magnet : Red Capsule moving inside indicator tube. White annular line on capsule indicates ‘Level’.Pulley Assemblies: Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure (2 Nos.) Protection Conduit: Horizontal Limb: GI pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb: GI pipe 25NB x 195mm & 100mm longProcess Connections: 1” 150#Gauge Board Brackets: Powder coated MS
