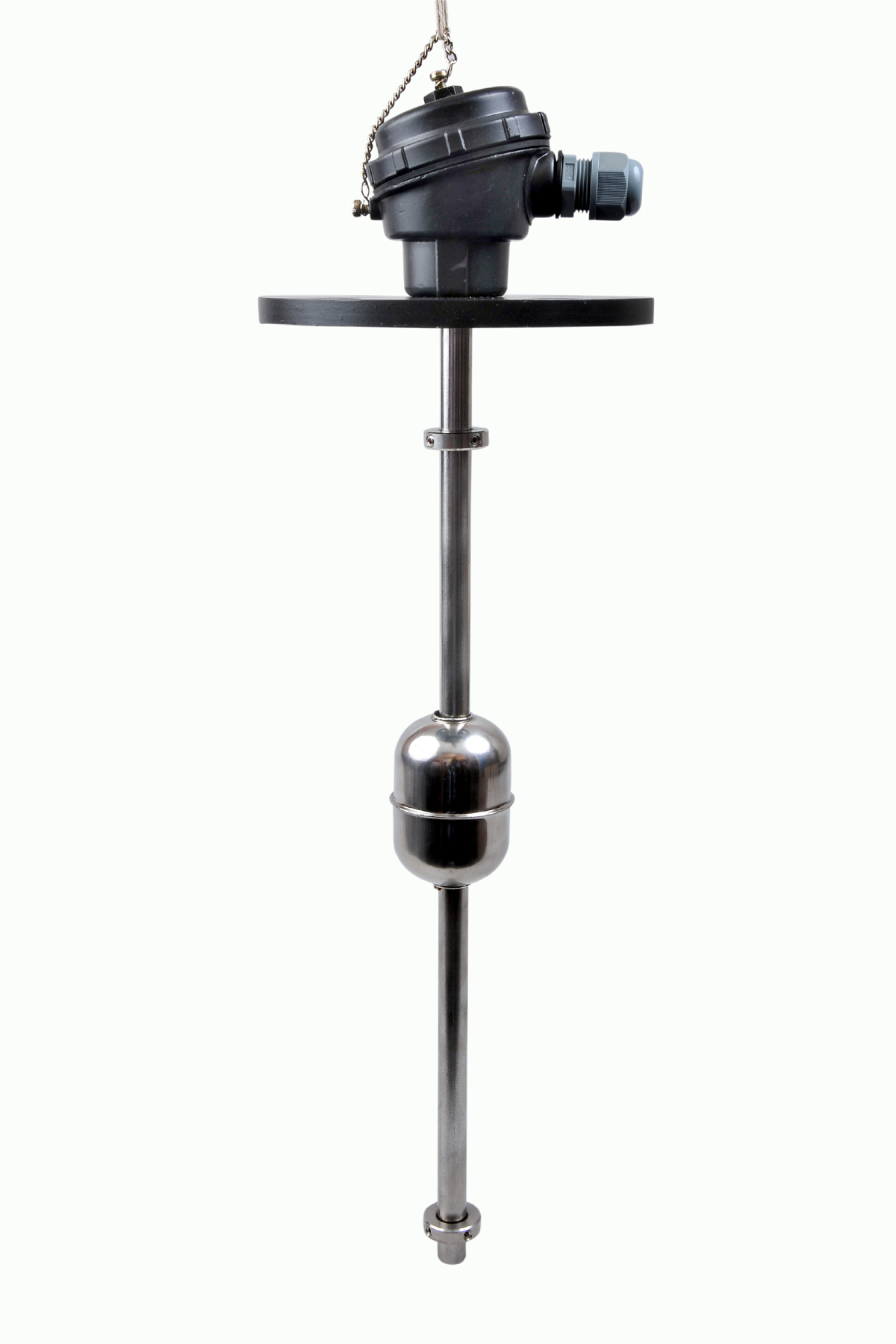

The Magnetic Level Switch consists of the non-abrasive float carrying permanent magnet and non-ferrous stem carrying one. Two or multiple reed switches. The float glides along the stem and when the float nears the vicinity of reed switch the magnetic field of permanent magnet forces the contact to close, thereby completing the external electrical circuit. We offer Magnetic Level Switch at a reasonable price. Applications: Due to simple design, reliability and with only one moving part i.e., Magnetic float, Magnetic Level Switch finds application in various liquids were accurate and repeated liquid level control is called for. Magnetic Level Switch is suitable for storage tanks, utility tanks, process tanks, hydraulic power pack, centralized lubrication system, fuel tanks, cooling tower, textile, pharmaceuticals and special purpose machines. Technical specifications: Type of float: 34 x 36 Pu foam, 40 SS 316, Float, 52 SS 316, 68 SS 316 Temperature 0Deg C to + 80Deg C / -25Deg C to + 125Deg C Pressure Max. Atmospheric 20 kg/cm2 Stem: SS 304, SS 316, PP, PTFE, Titanium Flange Size: Any table flange and size Max. Length 3000mm Accuracy +2mm Set point 1 to 10
