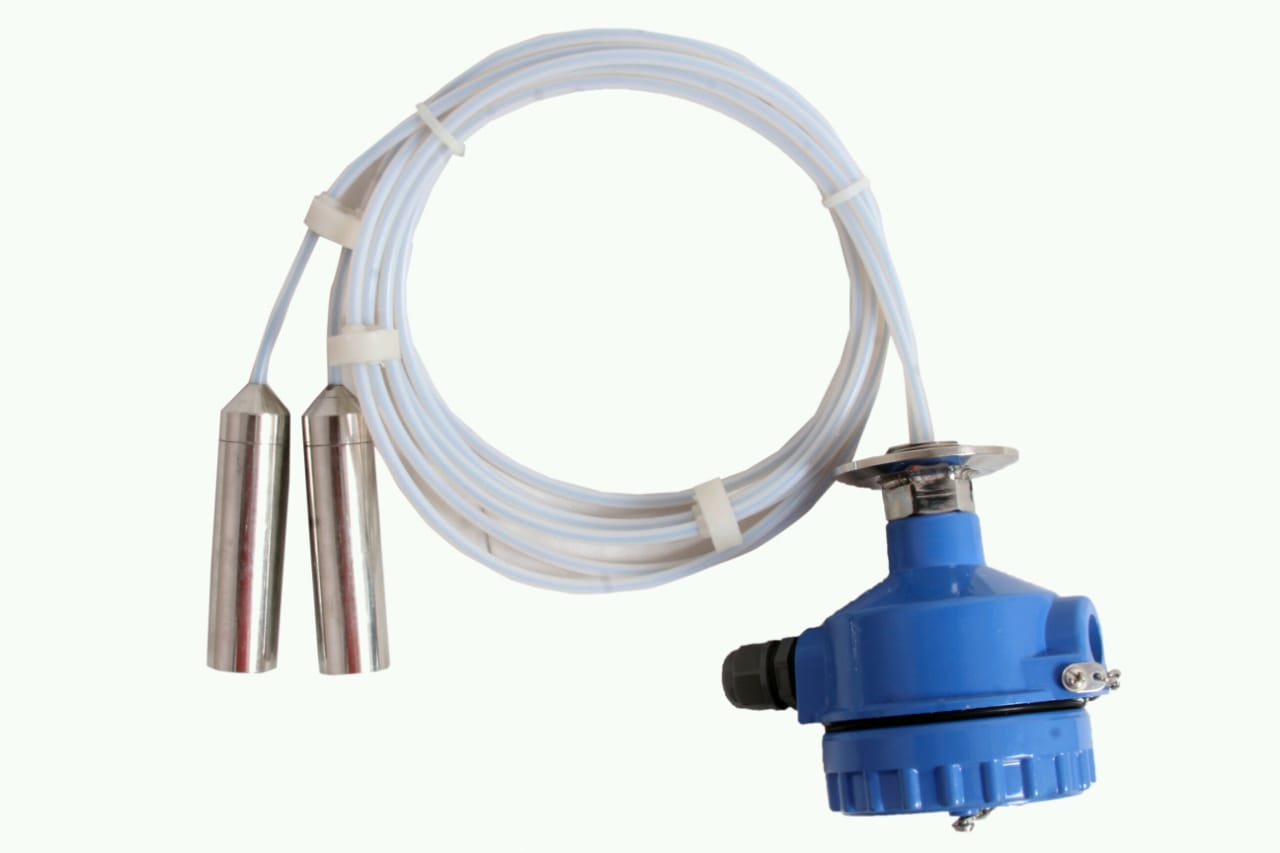

Capacitance Level Transmitter can be used for conductive as well as non conductive liquids. It is offered with PTFE sleeve for better insulation & to withstand high temperature in conductive tanks the insulated probe acts as one electrode & the tank wall as another electrode, any change in liquid level the dielectric value will change thereby changing the capacitance value proportional to the liquid level. In the case of nonconductive tanks, a reference probe is provided as a ground electrode. Output is 4-20mA, 4 wire connections for isolated supply & 3 wires for non isolated supply. 2 wire loop powered output is also available. Tank empty (4mA) & Full (20mA) calibration is through easy field calibration button. Rigid probe is offered for tank depth up to 3 mt & Flexible probe up to 15mtr. Capacitance Level Transmitter is available with a different mounting arrangement to suit customer requirement. It is widely used for water, diesel, oil and chemical application. Highlights : Excellent Design Used For Sensing Level Of Liquids Longer Service Life Specification: Type: 2 Wire (Loop powered), 3 wire (Non isolated), 4 wire (Isolated) 4-20 mA Input: 24V Dc Permissible Load: 500Ω Measuring Rage: 200 mm to 3000 mm in Rigid Probe Upto 15000 mm in Flexile Probe Pressure Max.: 5kg / cm 2 Temperature: -25 to 100Deg C Enclosure: Die Cast aluminium, Weatherproof or Flameproof Resolution: 5mm Accuracy: +0.5 % Fs Mounting: Threaded -½" / 1" / 2" bspm or Npt Flange - 1" /2" Asa/Ansi/Jis/din Mounting: SS 304 or SS 316
